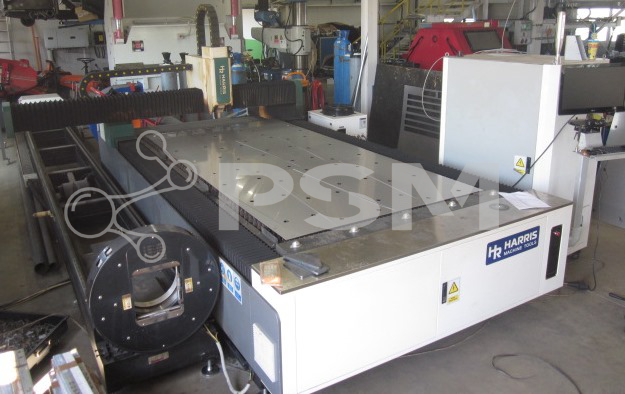

Laser CNC machine
HARRIS GRF3015/2000W
Technical parameters:
- Stroke by X - 1550 mm
- Stroke by Y - 3050 mm
- Stroke by Z - 250 mm
- Stroke by W - 30-155 mm
- W turning speed - 100 r/min
- Fast feeding by X/Y/Z - 80 m/min
- Max. acceleration - 0.8g m/s2
- Re-positioning accuracy - ±0.03 mm
- Positioning accuracy - ±0.05 mm
- Max. pipe weight - 65 kg
- Machine size - 7780x3150x1810 mm
- Pipe size: 30 - 220 mm
- Round pipe: 25x25
- SQRT pipe: 150x150
- Pipe lenght - 6000 mm
